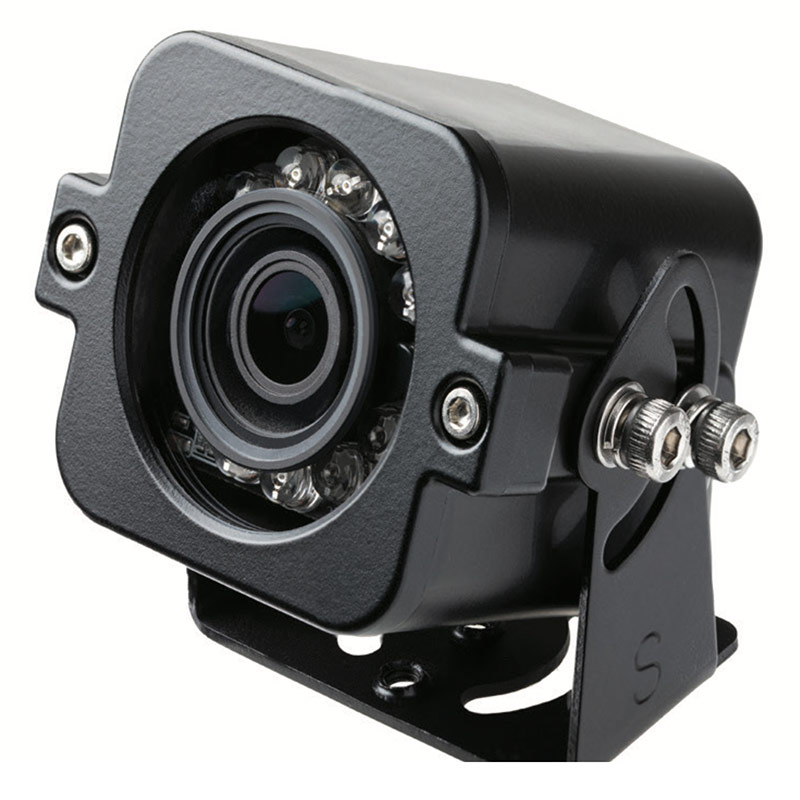

FV-HD49-1 | Compact IP HD Camera
The FV-HD49-1 is an industrial outdoor IP camera designed for reliable video monitoring in harsh environments. Built around a 2MP Sony CMOS sensor, the camera delivers full HD 1080p resolution with excellent low light performance. Featuring a rugged IP66-rated housing, integrated PoE power, and support for ONVIF-compliant H.264 streaming, this camera is well suited for outdoor industrial monitoring, perimeter security, and remote inspection applications.
Illumination with white light LEDs enables clear imaging while advanced image processing features such as WDR, 3D noise reduction, and DSS (Sens-Up) enhance visibility in challenging lighting conditions.
Specifications
| Imager | 1/2.8” 2MP Starvis CMOS |
| Shutter | 1/25(30)~1/30,000sec |
| Minimum Illumination | 0.1 lux, 0.003 lux (DSS on) |
| LED | 630nM White Color LED |
| White Balance | AUTO, AUTOext, Preset, Manual |
| Noise Reduction | Off, On (Low, Middle, High) |
| Day & Night Mode | Auto, Color, B&W |
| View Angle | 124.5° |
| Focal Length | 2.8mm |
| Video Output | H.264, MJPEG (Duplex Streaming) |
| Protocol | TCP/IP, UDP/IP, RTP, RTSP, RTCP, NTP, HTTP DHCP, FTP, SMTP, DNS, DDNS Onvif |
| Resolution | 1920 x 1080 |
| Weight | 305g |
| Voltage Required | 802.3af PoE |
| Current | 3.5 W max. |
| Operating Temperature | -10° to 55° C |
| Dimensions | 44(W) x 44(H) x 60(D) |
| Mount | Wall mount standard |
| Protection Class | IP-66 |
Documentation
Datasheet
| FV-HD49-1 Datasheet | 670K PDF | DOWNLOAD |
Line Drawings | ||
| FV-HD49-1 Line Drawing | 20K PDF | DOWNLOAD |
CAD Drawings | ||
| FV-HD49-1 CAD Drawing | 546K STEP File (zipped) | DOWNLOAD |
